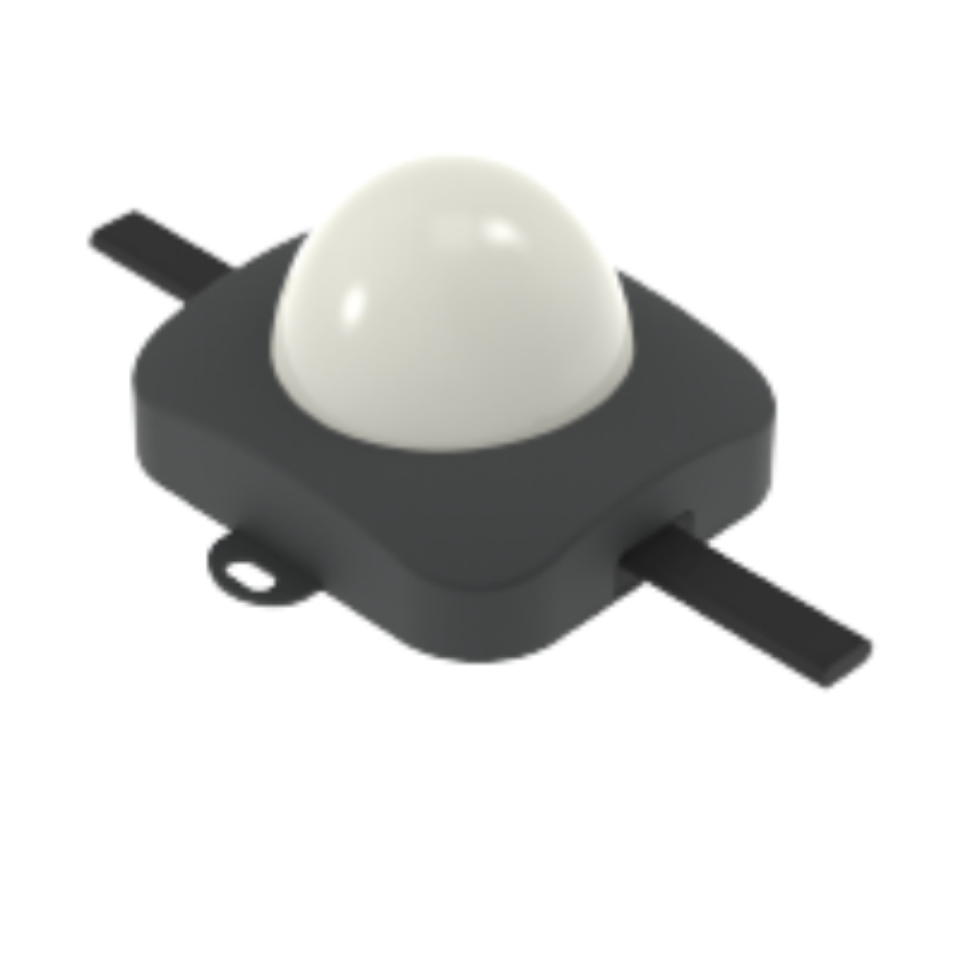

Picture of Dot Light 5W

Dot Light 5W

Range :
Dot Lights
Code :
JQL-GRY-DTL05W
Description :
- Luminous Flux 350 lm @4000K
- Power Consumption 5W
- Beam Angle (50%Imax) 110° / 160°
- Color Temperature 2700K / 3000K / 4000K / 5000K / 5700K / 6500K / RGB / RGBW
- LED Brand CREE/ NICHIA/ OSRAM/ LUMILEDS
- Input Voltage DC24V
- Protection Class IEC III
- Control DMX / RDM / DALI / Remote / ON-OFF
- Power Factor ≥0.95
- Pixel 8
- Finish Powder coating / Anode oxidation
- Housing Die-cast aluminium ADC12
- Diffuser High strength optical PC
- Dimensions ø71.6xH112mm / W103xH73.2mm / W90xH73.2mm
- IP Rating IP65 / IP66 / IP67 / IP68
- IK Rating IK06 / IK07
- Mounting Side bracket
- Operating Temperature -35°C ~ 60°C (-31°F ~ 140°F)
- Storage Temperature -40°C ~ 70°C (-40°F ~ 158°F)
- THD <10%
- Lifespan >50,000Hrs (Ta=35°C@L70)
- Certificate BIS / CE / RoHS

Price on request

Download:

Disclaimer:

Jaquar reserves the right at its sole discretion, to change/modify/alter any product specification at any time without notice, where improvement can be effected in design, development and dimensions.
Although the information shown in this catalogue is updated to the extent possible but the same may vary. It is advisable to consult our local representative or check in a period manner for latest technical and other updates.
The prices are subject to change without notice and those ruling at the time of supply will be charged.
Colours & sizes of product images shown in the Website may vary in reality
